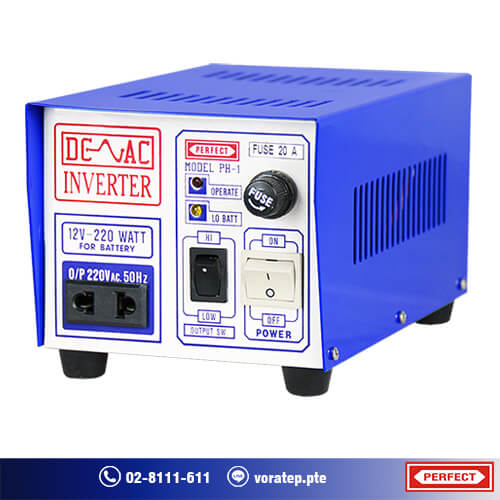

INVERTER : PH-1

Inverter Model PH-1 has 2 types :



  • Inverter for battery 12 VDC : convert 12 VDC from battery to home electricity 220 VAC
  • Inverter for battery 24 VDC : convert 24 VDC from battery to home electricity 220 VAC





Usage



Suitable for general use such as   fax machines, telephones, computers, fans, TVs, videos, hand drills, hand grinders, jigsaw machine, ice maker, ice cream freezer, rice cooker, vacuum bottle, light bulbs, Fluorescent lamps, incandescent lamps, and others that use power not exceeding the rating of the inverter (watt power)



Warranty 1 Year

pdf Download

Category:
  • Description

Product Description

INVERTER 12 VDC

MODEL I/P VDC I/P ADC O/P VAC O/P AAC WATT
PH – 1 12V DC 9.9A DC 220V AC 0.5A AC 110W
PH – 1 12V DC 14A DC 220V AC 0.8A AC 160W
PH – 1 12V DC 19.4A DC 220V AC 1A AC 220W
PH – 2 12V DC 25A DC 220V AC 1.3A AC 275W
PH – 2 12V DC 29A DC 220V AC 1.5A AC 325W
PH – 2 12V DC 33A DC 220V AC 1.7A AC 375W
PH – 3 12V DC 38A DC 220V AC 2A AC 425W
PH – 3 12V DC 46A DC 220V AC 2.4A AC 525W
PH – 3 12V DC 55A DC 220V AC 2.8A AC 625W
PH – 02 12V DC 63A DC 220V AC 3.3A AC 725W
PH – 02 12V DC 71A DC 220V AC 3.7A AC 825W
PH – 02 12V DC 80A DC 220V AC 4.2A AC 925W
PH – 02 12V DC 89A DC 220V AC 4.6A AC 1025W
PH – 02 12V DC 104A DC 220V AC 5.5A AC 1200W



INVERTER  24 VDC

MODEL I/P VDC I/P ADC O/P VAC O/P AAC WATT
PH – 1 24V DC 5A DC 220V AC 0.5A AC 110W
PH – 1 24V DC 7A DC 220V AC 0.8A AC 160W
PH – 1 24V DC 9.7A DC 220V AC 1A AC 220W
PH – 2 24V DC 13.5A DC 220V AC 1.2A AC 275W
PH – 2 24V DC 14A DC 220V AC 1.4A AC 325W
PH – 2 24V DC 17A DC 220V AC 1.7A AC 375W
PH – 3 24V DC 18A DC 220V AC 1.9A AC 425W
PH – 3 24V DC 22A DC 220V AC 2.3A AC 525W
PH – 3 24V DC 27A DC 220V AC 2.8A AC 625W
PH – 02 24V DC 32A DC 220V AC 3.3A AC 725W
PH – 02 24V DC 36A DC 220V AC 3.6A AC 825W
PH – 02 24V DC 41A DC 220V AC 4.2A AC 925W
PH – 02 24V DC 45A DC 220V AC 4.5A AC 1025W
PH – 02 24V DC 53A DC 220V AC 5.4A AC 1200W
PH – 35 24V DC 65A DC 220V AC 6.8A AC 1500W
PH – 35 24V DC 78A DC 220V AC 8A AC 1800W
PH – 35 24V DC 86A DC 220V AC 9A AC 2000W
